Applicable materials:River pebbles, calcite, quartz stone, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt, etc.
Application scope:It is suitable for crushing in mining, cement, highway, railway, coal, metallurgy, building materials and other industries.
Crushing and sand making work of river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, limestone, weathered sand, diabase, granite, basalt and other materials.

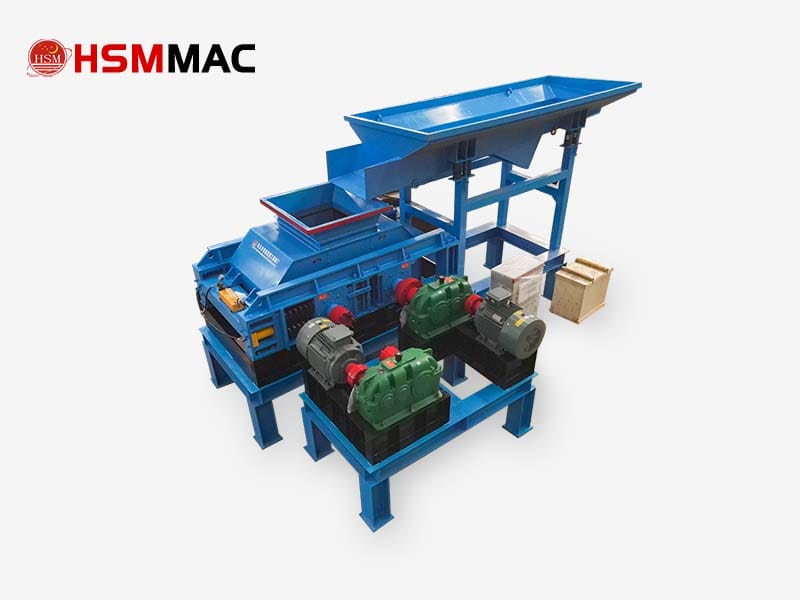

The double tooth roll crusher offers a versatile, efficient, and durable solution for various industries. It handles different materials, adjusts discharge size, and requires minimal maintenance, making it a smart investment. By selecting the right model, you achieve greater efficiency, lower costs, and higher-quality output.
Customized Crushing Solution for Your Raw Materials
chat online
| Model | Roller diameter (mm) |
Roller length (mm) |
Max feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) |
| 450×500 | 450 | 500 | 200-500 | 15-100 | 30-60 | 7.5×2 | 3800 | 2260×2200×766 |
| 600×750 | 600 | 750 | 300-600 | 20-120 | 60-100 | 11×2 | 7200 | 2780×3065×1310 |
| 600×900 | 600 | 900 | 300-600 | 30-150 | 80-120 | 18.5×2 | 7800 | 4500×1900×1350 |
| 800×1050 | 800 | 1050 | 500-800 | 30-150 | 100-160 | 22×2 | 12600 | 2550×2050×1100 |
| 900×900 | 900 | 900 | 600-900 | 30-200 | 150-200 | 22×2 | 13500 | 2780×4100×1550 |
| 1015×760 | 1015 | 760 | 700-950 | 30-200 | 150-200 | 45×2 | 18800 | 7800×3200×1980 |
| 1200×1500 | 1200 | 1500 | 800-1050 | 30-200 | 200-300 | 55×2 | 52000 | 8010×4500×2050 |
