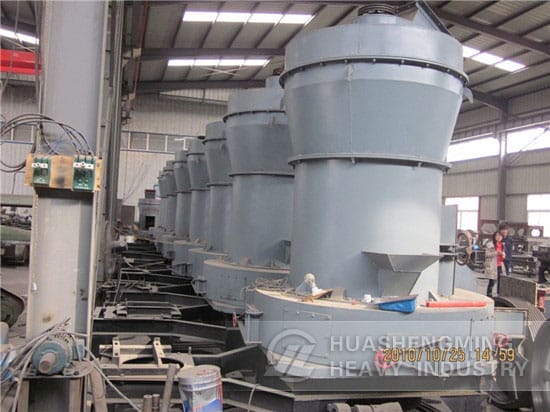

YGM High Pressure Grinding Mill

Applicable materials:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.

  • Feed size:30 mm
  • Productive capacity:0.5-10 t/h

Application scope:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.

Follow Us:

Product description

YGM Series High Pressure Suspension Grinding Mill is suitable for grinding the barite, limestone, kaollnite, ceram and slags, etc. which below scale 9.3 of Moth and below 6% shadness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgy, chemical engineering and building material for high fine powder generating and processing . The Product size is adjustable in the range of 80-425 mesh. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

Large stuffs are delivered to bunker by elevator after crushed, then to chamber by electric feeder. In mainframe, shovels scoop up stuffs into the parts between rollers and ring, the processed powders are blowed up to analytical engine with wind entering chamber by blower, part of powders which can not be up the demand fineness will fall back to be grinded, left(that is final product) with airflow enter concentrator and divided with air then discharged from discharge vavle. Air returns to blower and circles, flowing in minus state.

Technical parameters

Model Piece
of roller
Size of the
roller (mm)
Size of the
ring (mm)
Feed
size(mm)
Fineness of
powder (mm)
Capacity
(t/h)
Motor
power(kw)
Weight (without
motor)(t)
YGM65 3 Φ210×150 Φ650×150 ≤15 0.033-0.613 0.4-1.8 15 3.6
YGM75 3 Φ260×150 Φ780×150 ≤15 0.033-0.613 1-3 18.5 4.8
YGM85 3 Φ270×150 Φ830×150 ≤20 0.033-0.613 1.2-4 22 8
YGM95 4 Φ310×170 Φ950×170 ≤25 0.033-0.613 2.1-5.6 37 14
YGM130 5 Φ410×210 Φ1280×210 ≤30 0.033-0.613 2.5-9.5 75 24
