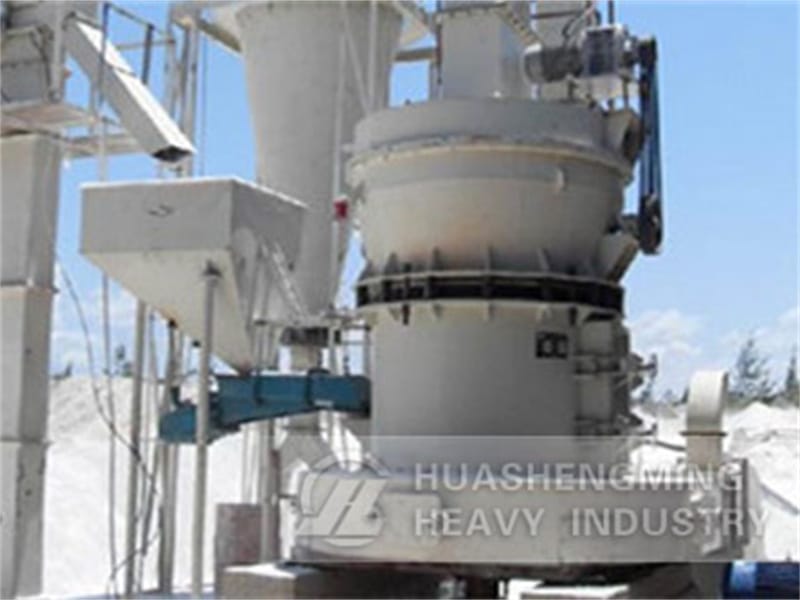

TGM Super Pressure Trapezium Mill

Applicable materials:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.

  • Feed size:25-40 mm
  • Productive capacity:3-36 t/h

Application scope:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.

Follow Us:

Product description

TGM Series Super Pressure Trapezium Mill is the latest grinding mill. TGM Series Supper Pressure Trapezium Mill is researched and designed by our experts basing on long term experiences of mill research and development, and following to numbers of customers’ using requirements and suggestions home and aboard.
TGM Series Super Pressure Trapezium Mill mainly consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipment are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc.
TGM Series Super Pressure Trapezium Mill can grind all kinds of non-flammable and non-explosive minerals with Mohs hardness lower than 9 and humidity less than 6%,and TGM Series Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, mining industry, etc.
suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

Large materials are crushed by Jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously. The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector. The mainframe is driven by the speed reducer through the central axis in the mill. The quincunx stand connected with the upper part of central axis, at the quincunx stand, rollers are set and by which the vibrating pivot formed. Below the quincunx stand and rollers there is shovel system. Materials are fed into the space between rollers and shovels when they are turning, and then be grinded by the pressure produced when rollers are turning, thus powder is made.

Technical parameters

Model Specification
Items
TGM100 TGM130 TGM160 TGM190
Max feeding size(mm) 25 30 35 40
Final size(mm) 1.6-0.045
the fineness can
reach 0.038
1.6-0.045
the fineness can
reach 0.038
1.6-0.045
the fineness can
reach 0.038
1.6-0.045
the fineness can
reach 0.038
speed for main
frame(r/min)
130 103 82 66
Roller quantity(Piece) 4 5 6 6
diameter(mm) Φ310 Φ410 Φ440 Φ540
height(mm) 170 210 270 280
Ring diameter (mm) Φ1050 Φ1400 Φ1750 Φ2050
height(mm) 170 210 270 280
Power
(KW)
motor for main
frame(KW)
37 75 132 200
motor for blower
(KW)
37 75 132 200
motor for
eparator (KW)
5.5 7.5 18.5 18.5
Capacity(t/h) 3-8 6-15 9-22 18-36
Overall dimension (mm) 7325×7521×8200 8802×7505×9695 13025×7169×8355 16000×9400×9300
Weight(t) 16 26.1 38 50
