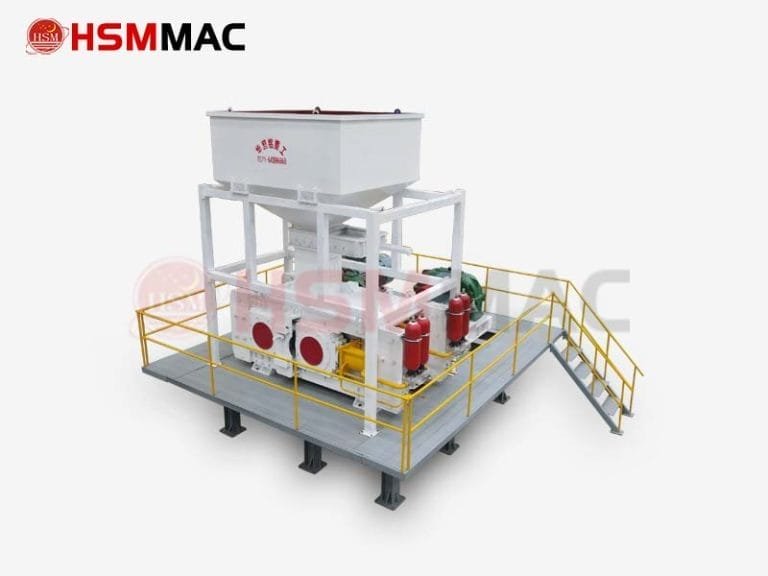

High Pressure Roller Crusher

Applicable materials:clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

  • Feed size:≤100mm
  • Productive capacity:60-1000t/h

Application scope:cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

Follow Us:

Product description

What is a high pressure roller crusher?

High Pressure Roller Mill is a high pressure roller mill with a simple structure and reliable performance, which can control the fineness modulus for fine and ultra-fine crushing operations. Our company has specially considered the requirements for hard material crushing in the current market in its design, which greatly enhances the crushing capacity compared to other high-pressure roller mills. Suitable for fine crushing operations of hard and medium hard materials with compressive strength less than 250Mpa and humidity less than 10%. Solid materials such as river pebbles, coke, coal, ceramic raw materials, quartz stone, limestone, muddy shale, chalk, bricks, slag, clinker, feldspar, coke feldspar, gypsum, salt, chemical raw materials, etc.

High Pressure roll mills can also be used for finely crushing various single raw

materials such as high or medium hardness ores, rocks, industrial waste residues, or mixed raw materials mixed with clay in industrial sectors such as mineral processing, power, chemical, cement, refractory materials, abrasives, and construction. Especially in the production of products such as guar rice stone, coal, and coal gangue in construction materials and power industries, they have better performance than general high pressure roller mills, It can also be widely used in the crushing steel sand industry.

Product characteristics:

Hydraulic adjustment system allows the operation more convenient and easy , meanwhile protects the stablity.

Roller surface is equipped with carbide column nails, which greatly extend the life of the device up to 20,000 hours.

Manganese steel roller surface application in the Pebble field has a high economic efficiency.

suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

The main body of the Roller mill is composed of two opposite rotating rollers. Brittle materials are fed into a weighing bin equipped with weighing sensors by conveying equipment, and then through the feeding device of a roller press, they enter between two rollers of the same size that rotate relative to each other. The rollers pull the materials into the roller gap, press them into dense material cakes, fall from the roller gap, pass through the discharge hopper, and are output by the conveying equipment. Further dispersion or grinding of the material cake by the next process.







Technical parameters

Model Feed size
(mm)
Capacity

(t/h)

Power (kw) External Dimension (mm)
G100x60 50 145-200 (132-200)x2 3186*2309*2371
G120x80 50 190-310 (200-250)x2 4560*3130*3335
G140x100 50 310-420 (250-315)x2 5153*3730*3885
G180x150 60 850-1180 (800-900)x2 6500*4100*4300
advantage
  • Founded in 2008Serving millions of users over the years
  • Customized ServiceCustomized crushing solutions for consumer needs
  • Tailored ProductionSupporting customers to put into science-based production
  • Routing InspectionQuick resolution of after-sales issues
service
  • Kindly

    Leave your contact information.

  • 7x24hours

    Online customer service.

  • Customization

    Well-trained engineers offer you customized crushing solutions.

  • Production

    Orders will be completed fast with high quality.

  • Installment

    Online technical guidance provided.

  • 7x24 Hours

    All Life Service.
