Product description

HSM Industrial Aggregate Systems

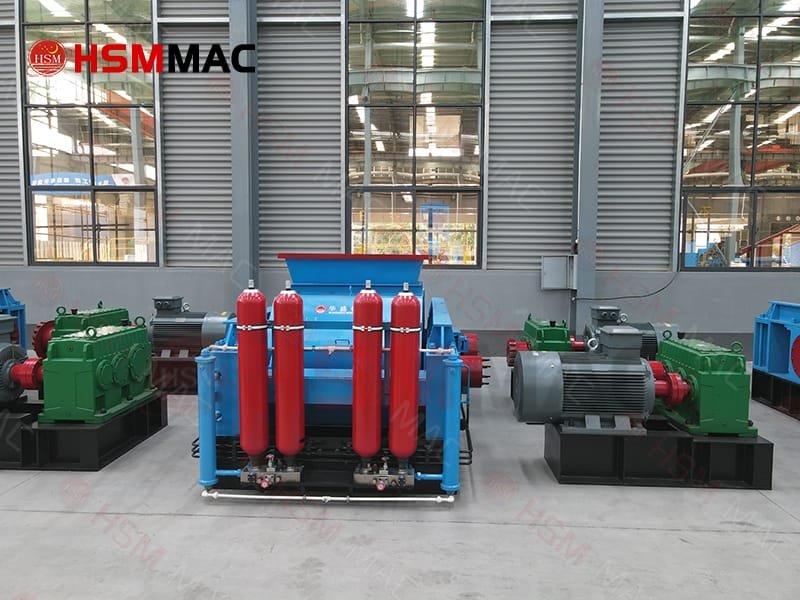

Heavy-Duty Hydraulic Double Roller Crusher

Laminar Flow Crushing | Precision Sand Production | 40% Efficiency Gain

Feed Size: ≤120 mm | Yield: Optimized Cubic Shape

The HSM Hydraulic Double Roller Crusher is an advanced mechanical-hydraulic solution engineered for high-capacity fine crushing. By utilizing synchronized counter-rotating alloy rollers, it subjects materials like iron ore, quartz, and limestone to controlled static extrusion. This process fractures the mineral along its natural grain, resulting in an optimal cubic particle shape while minimizing wasteful fines.

Engineered Performance Advantages

Downstream Circuit Optimization: Delivers uniform, mill-ready feed that reduces load on ball mills, significantly lowering total circuit power consumption.

Extended Component Lifecycle: Custom high-chromium manganese rollers offer 3-5x the service life of standard liners. Modular design allows for rapid on-site maintenance.

Real-Time Hydraulic Tuning: Intelligent PLC interface enables discharge gap adjustments on-the-fly without production stops.

Technical Specifications (2PGY Series)

Model	Roll Diam. (mm)	Max. Feed (mm)	Capacity (t/h)	Power (kw)
2PGY750×500	φ750	≤ 40	20 – 30	2 × (22-30)
2PGY800×800	φ800	≤ 40	40 – 50	2 × (37-45)
2PGY1000×800	φ1000	≤ 40	50 – 80	2 × (45-55)
2PGY1500×1200	φ1500	≤ 120	150 – 200	2 × (132-160)
2PGY2000×1200	φ2000	≤ 120	300 – 400	2 × (315-355)

Ready to Optimize Your Crushing Circuit?

Get a professional factory-direct technical proposal tailored to your tonnage requirements.

Request Custom Quote →

suitable for more than 200 types hard materials

Small-Scale Gold Ore Crushing Line
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

Sand Production Application
Mineral Processing Crushing Applications

Technical parameters

Qualification certification

Multiple international authoritative certification, quality assurance

service

Kindly
Leave your contact information.
7x24hours
Online customer service.
Customization
Well-trained engineers offer you customized crushing solutions.
Production
Orders will be completed fast with high quality.
Installment
Online technical guidance provided.
7x24 Hours
7x24 Hours
All Life Service.
