Efficiency Transformation: 200 TPH High-Silica Aggregate Production

Applicable materials:River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on

  • Feed size:25-100mm
  • Productive capacity:2-200t/h

Key Equipment

Follow Us:

CASE

Strategic Implementation

Efficiency Transformation: 200 TPH High-Silica Aggregate Production

Region: Southeast Asia
Feedstock: Abrasive River Pebbles (SiO₂ >78%)
Capacity: 180-200 Tons Per Hour

Operational Diagnostic Analysis

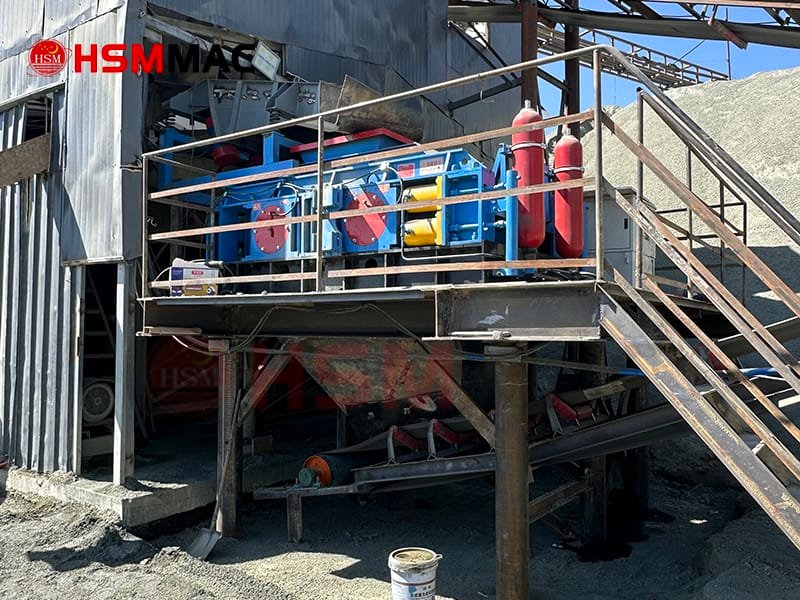

Double-roller sand making machine site

Double-roller sand making machine site

When processing river pebbles with silica levels exceeding 78%, traditional impact-based crushing often falls into a cycle of high investment and low yield. Before transitioning to HSM technology, the client’s production line faced severe economic pressures:

Excessive Wear Cycles

Wear parts required replacement every 120 operating hours. This frequent intervention not only spiked per-ton costs but also disrupted the downstream supply schedule for major infrastructure projects.

Quality Compromise

Ultra-fine dust levels (<0.075mm) reached nearly 20%, leading to an imbalanced aggregate gradation that failed to meet high-strength concrete mix requirements.

The HSM Engineering Optimization Path

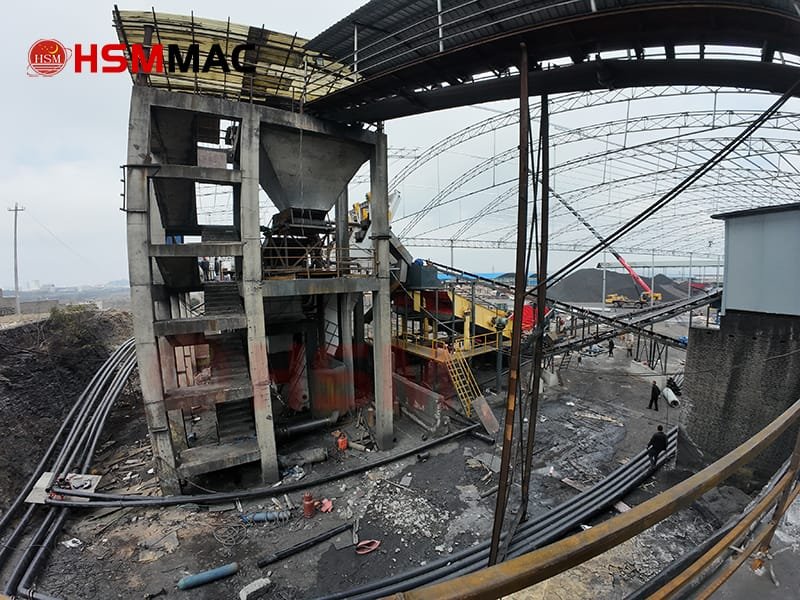

Double-roller sand making machine site

Double-roller sand making machine site

To counter the extreme abrasiveness of the material, HSM engineers deployed the 2PGY1500×1200 Hydraulic Double Roller Crusher, shifting the process from “impact-crushing” to a high-efficiency “laminar-crushing” ecosystem.

METHOD 01

Static Pressure Crushing

Utilizes constant hydraulic pressure to fracture material through inter-particle compression, avoiding high-speed metal-on-stone impact.

METHOD 02

Smart Gap Precision

A PLC-integrated adjustment system ensures the roller gap remains locked at 3mm, maintaining a consistent Fineness Modulus (2.6-3.0).

METHOD 03

Alloy Durability

5th-Gen high-chromium manganese alloy skins, specifically treated for extreme silica environments, significantly extending maintenance intervals.

Closed-Loop Production Logic

⛰️

Raw Feed ≤30mm

——▶
2PGY CRUSHING UNIT
——▶
🏗️

M-Sand 0-5mm

Operational Value Delivery

Key Performance Indicators Legacy VSI Process HSM 2PGY Integration
Liner Wear Life 120 Hours 850+ Hours
Energy Cost per Ton $1.15 / Ton $0.82 / Ton
Fines Rate (<0.075mm) 18% – 22% 8% – 10%

Project Success Milestone

By implementing HSM hydraulic crushing technology, the client achieved a drastic reduction in per-ton operating expenses, saving over $120,000 annually in spare parts and downtime labor. Furthermore, the high-grade aggregate consistency has secured their reputation as a premium supplier in the regional infrastructure market.

Consult an Engineer for Your Project
