HSM Hydraulic High-Pressure Roller Mill: The Ultimate High-Efficiency & Energy-Saving Crushing Solution
Core Driving Force: Material-Bed Comminution & Intelligent Hydraulics
Adopting the proven material-bed comminution principle, the HSM hydraulic roller mill applies immense pressure across compacted material beds via two counter-rotating rollers. With inter-roller pressure reaching 150–300 MPa, abundant micro-cracks are created inside the feed material, dramatically increasing downstream grinding efficiency.
- Full-Hydraulic Automatic Adjustment: Dynamically and steadily maintains precise roller gaps based on material hardness and target particle size requirements.
- Automatic Yielding Protection: When uncrushable foreign objects (e.g., tramp iron) enter the chamber, hydraulic cylinders automatically retract to relieve pressure and protect the main frame from damage, resetting automatically for uninterrupted production.
Superior Build Quality: High-Wear-Resistant Roller Shells
To solve the industry pain point of heavy wear-part consumption when processing abrasive materials (granite, basalt, diabase), HSM uses a proprietary alloy formula and manufacturing process for core components.
- Studded Roller Surfaces: Optional studded configuration designed specifically for high-abrasion rock feedstocks.
- 2–3x Longer Service Life: Field operating data confirms roller shell lifespans are 2–3 times longer than standard machinery, sharply reducing O&M costs and downtime frequency.
Intelligent Operation & Maintenance (PLC Centralized Control)
- PLC Intelligent System: Centralized control of all operating parameters for seamless, automated management.
- Dual-Motor Synchronous Drive: Optimizes power transmission, stabilizes machine performance, and significantly reduces energy consumption and labor dependency.

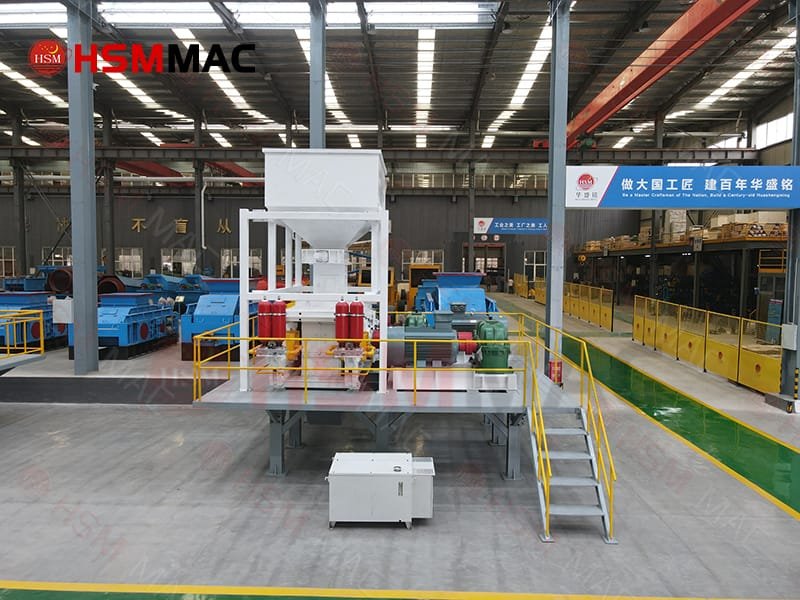

Heavy-duty roller shell engineering and automated PLC control interface
Wide Applications: From Sand Aggregates to Mineral Beneficiation
Covering a broad capacity range from 60 t/h to 300 t/h, HSM hydraulic roller mills fit small-to-medium plants as well as large mining corporations.
| Industry Sector | Feed Materials | Key Benefits & Output |
|---|---|---|
| Sand & Aggregate | River pebbles, limestone, granite, quartz | Delivers high-quality manufactured sand with excellent cubical particle shape and well-graded aggregate sizes. |
| Mineral Beneficiation | Gold ore, iron ore, copper ore, manganese ore | Fine-crushes ore down to < 3 mm, boosting downstream ball mill efficiency to achieve true “more crushing, less grinding.” |
Reliable Support: In-House Manufacturing & Full-Cycle Service
HSM Heavy Industry insists on in-house manufacturing of all core components rather than OEM assembly, guaranteeing strict quality control from the source.
🛠️ One-Stop Full-Cycle Service Package
Includes site surveys, process layout design, installation & commissioning, and fast-response technical support to resolve all on-site production challenges.
🤝 Visit Us & Schedule a Free Material Test Run!
We warmly invite clients to visit our manufacturing plant or operational reference sites. Bring your raw material samples for free test runs to verify real-world equipment performance first-hand!
