This article details the application and technical advantages of double roll crushers in cement manufacturing raw material preparation. By leveraging low-velocity layer-compression crushing instead of high-impact shattering, the equipment delivers uniform particle sizing, stable feed for raw mills, minimal over-grinding, and low power draw across diverse raw materials like limestone, clay, coal, and gypsum. Backed by adjustable roll gaps and customizable wear-resistant metallurgies, it offers an eco-friendly, energy-efficient solution for modern cement plants.
Cement manufacturing demands exceptional particle size uniformity in raw material preparation: predictable, stable sizing is essential to keep raw grinding mills running efficiently and steadily. Because raw inputs such as limestone, clay, coal, and gypsum vary widely in hardness and moisture, traditional high-impact crushers often create excessive fine dust and high wear. Utilizing high-pressure layer-compression crushing, the Huashengming (HSM) Cement Raw Material Double Roll Crusher delivers uniform discharge, adjustable sizing, and minimal over-powdering, making it the ideal medium-fine crushing choice for cement plants. HSM provides ready-to-ship inventory backed by empirical material trial verification.
Cement Limestone Feed & HSM Double Roll Crusher Unit
1. Key Pain Points in Cement Plant Crushing Stages
- 1. Strict Sizing Uniformity Demands: Crushed particle size directly governs the stability of raw grinding mills and clinker calcination kilns. Sizing fluctuations disrupt mill throughput and spike electrical power consumption.
- 2. Variable Material Hardness: Hard limestone, plastic clay, and brittle coal are often processed together, requiring machinery capable of handling mixed hardness profiles without choking.
- 3. Stringent Environmental Dust Control: Modern cement facilities face strict air quality regulations; high-dust crushing equipment violates environmental compliance standards.
- 4. High Energy Efficiency Requirements: Cement production is an energy-intensive industry; lowering specific kWh consumption per ton directly protects plant operating margins.
2. What Double Roll Crushers Deliver in Cement Plants
| Operational Function | Engineering Mechanism | Plant Benefit |
|---|---|---|
| Medium-Fine Raw Comminution | Secondary/tertiary compression of post-jaw limestone, clay, and coal. | Delivers uniform mill feed sizing 【Custom Parameters Available】. |
| Mixed Material Adaptability | Continuous positive nip force handles soft and hard minerals concurrently. | Prevents choking when processing variable raw feed blends. |
| Hydraulic Sizing Control | Adjustable inter-roll gap clearance matches exact mill requirements. | Ensures seamless integration with downstream grinding equipment. |
| Minimal Over-Grinding | Low-speed mechanical squeeze vs. high-velocity impact smashing. | Reduces fine dust generation and stabilizes raw mill pneumatic loads. |

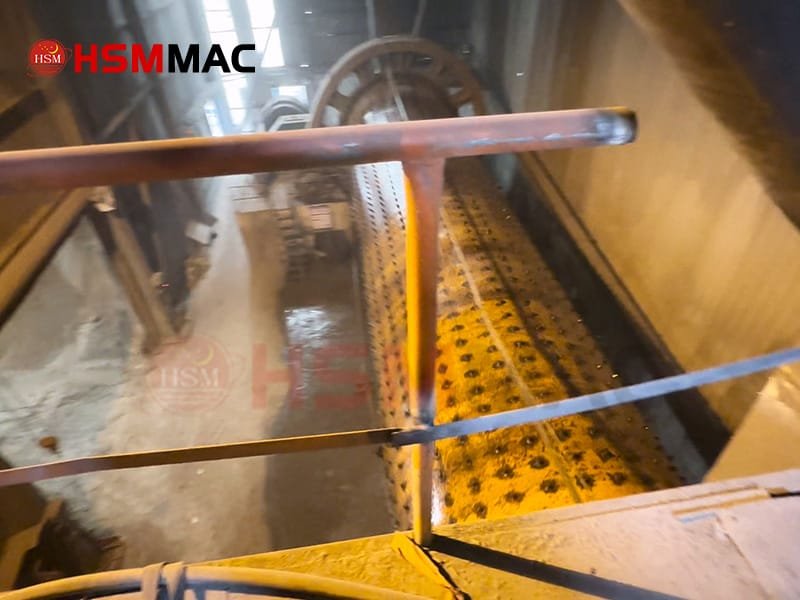

The crushed cement raw materials can be fed directly into the ball mill
3. Position in the Cement Manufacturing Flowsheet
A stable preparation circuit is critical before raw materials enter vertical mills or ball mills for pulverization:
Flowsheet: Primary Coarse Crushing (Jaw / Single-Stage Hammer Crusher) → Medium-Fine Crushing (Double Roll Crusher) → Raw Mill → Rotary Kiln Calcination
- Primary Stage: Reduces large run-of-mine quarry boulders down to manageable secondary feed dimensions.
- Medium-Fine Stage (Double Roll Crusher): Refines materials into uniform feed stock, creating stable input conditions for raw grinding mills 【Custom Parameters Available】.
- Grinding Stage (Raw Mill): Operates at peak efficiency with consistent fine feed, reducing overall specific power draw.
- Calcination Stage: Homogenized raw meal proceeds to preheater towers and rotary kilns for high-quality clinker production.
4. Key Selection Guidelines for Cement Plants
- 1. Match Maximum Feed Size: Ensure raw material lump sizes fall within roll nip intake limits; oversized feed requires preliminary primary crushing.
- 2. Configure by Mineral Hardness: Pure limestone installations utilize standard configurations; abrasive or hard inclusion ores require specialized wear-resistant metallurgy 【Custom Parameters Available】.
- 3. Align with Mill Sizing Requirements: Set target discharge gradation precisely to match downstream raw mill or roller press specifications.
- 4. Conduct Sample Testing: Because cement raw materials vary across quarries, empirical sample testing verifies crushing efficiency and wear rates before final equipment selection.
Optimize Your Cement Plant’s Raw Material Preparation Today:
Huashengming Heavy Industry provides customized roll configurations, complete plant flowsheets, and in-stock machinery dispatch 【Custom Parameters Available】.
Contact HSM engineers today to arrange a free raw cement material sample trial test and receive an engineered plant proposal.
