Applicable materials:River pebbles, calcite, quartz stone, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt, etc.
Application scope:River pebbles, calcite, quartz, marble, cobblestone, bentonite, iron ore, bluestone, mountain stone, slag, limestone, weathered sand, diabase, granite, basalt, etc.
Manganese ore is vital in industries like metallurgy, chemicals, and batteries. Efficient manganese ore crusher, like Huashengming’s double roller crusher, drive progress in these fields. This article explains how the double roller crusher excels at manganese ore crushing.

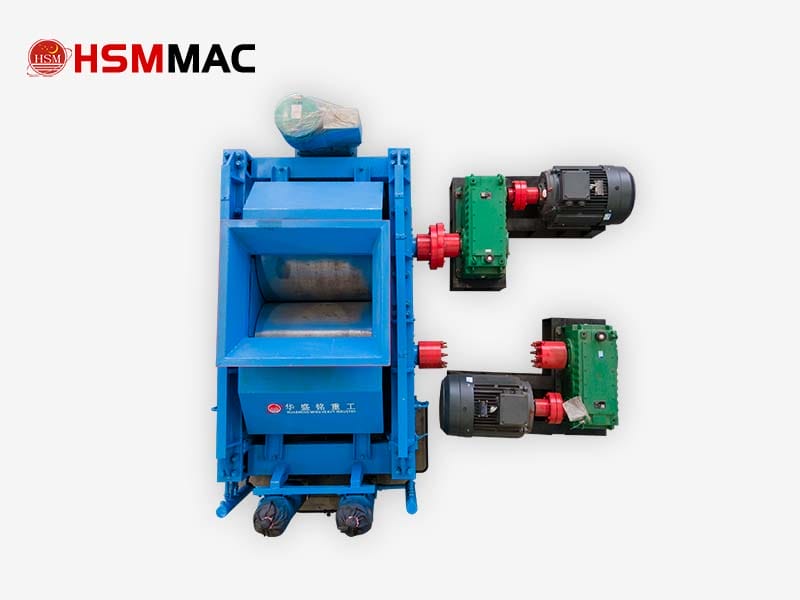

The double roller crusher crushes manganese by compressing it between two rotating rollers. The material enters the chamber and is crushed by the pressure between the rollers, achieving the desired particle size. This method is especially effective for brittle, medium-hard materials like manganese ore, delivering stable, efficient results.
The double roller crusher suits manganese ore and is ideal for limestone, coal, and silica as well. It quickly crushes large manganese ore chunks into uniform particles, ensuring efficient downstream processing. For manganese ore processors, Huashengming’s double roller crusher delivers high output and cost savings.
Efficient manganese ore crushing is key to industrial success. Huashengming’s double roller crusher, with its superior performance and durability, is a top choice for many businesses. Whether in crushing efficiency, wear resistance, or eco-friendliness, this crusher shines. Choose Huashengming for reliable double roller crushers and make manganese ore processing faster and more economical.
Customized Crushing Solution for Your Raw Materials
chat onlineThe Gravel sand making machine uses rollers to perform crushing operations. The material enters between the rollers from the feed port and crushes the river pebbles through extrusion. There is a certain gap between the two rollers. The larger the gap between the two rollers, the larger the material discharge particle size. Under the action of the compression spring, the smaller the gap between the two rollers, the smaller the material discharge particle size. By changing the adjustment gap, the material discharge particle size can be controlled.
Specification and model
|
Roll diameter (mm) |
Feed size (mm) |
Productive capacity (t/h) |
2PGT400×250
|
φ400
|
≤25
|
2-10
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
2PGY800×1000 |
φ800
|
≤40
|
50-80
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
