Vibrating Feeder

Applicable materials:Feeding the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry.

  • Feed size:300-750 mm
  • Productive capacity:30-450 t/h

Application scope:Feeding the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry.

Follow Us:

Product description

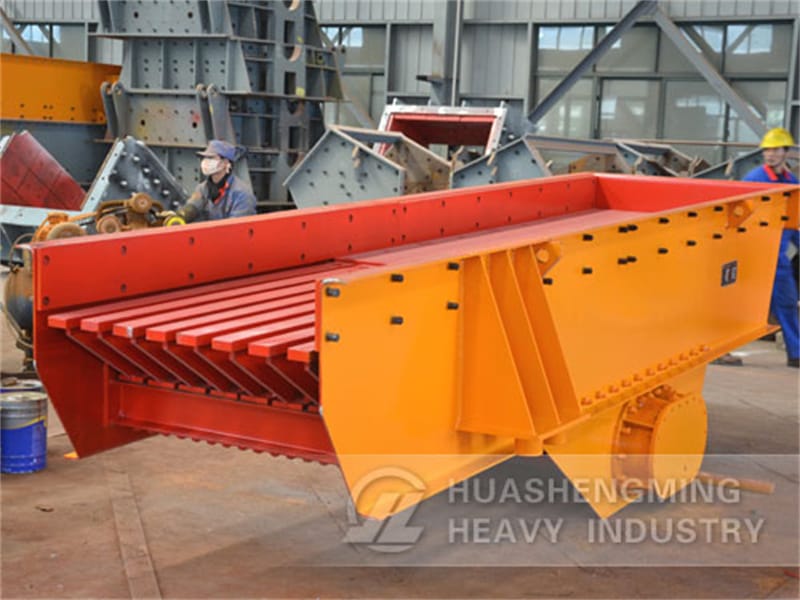

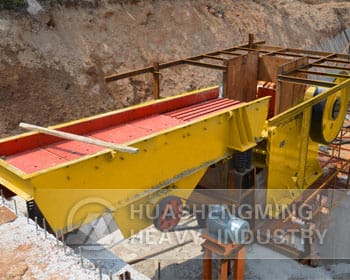

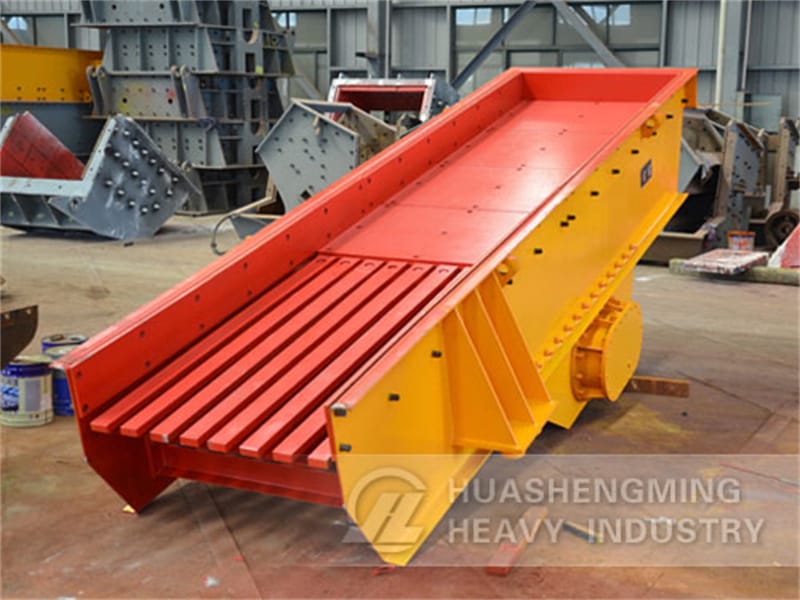

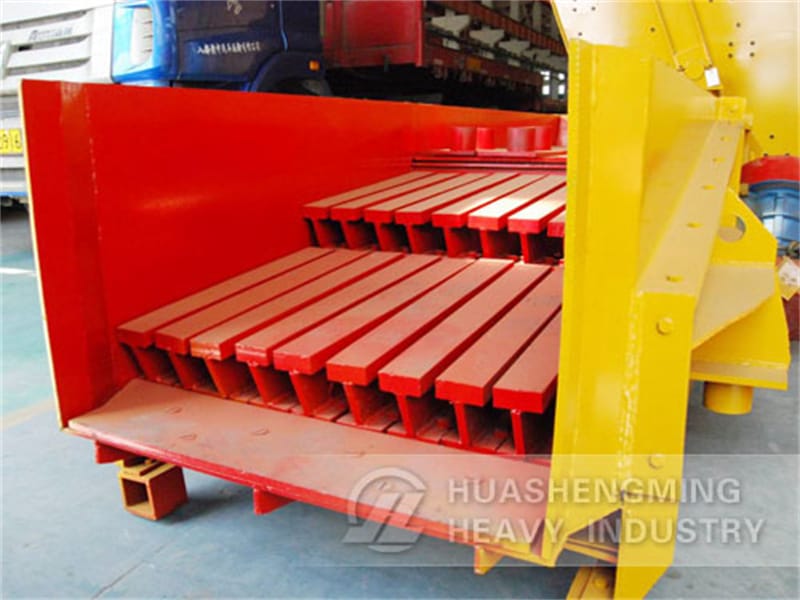

Vibrating feeder machine is used to feeder the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry. HSM vibration feeder series can be divided into GZD series and ZSW series.

suitable for more than 200 types hard materials

Customized Crushing Solution for Your Raw Materials

chat online
  • River pebble sand making
  • Granite sand making
  • Molybdenum ore beneficiation
  • Limestone sand making

working principle

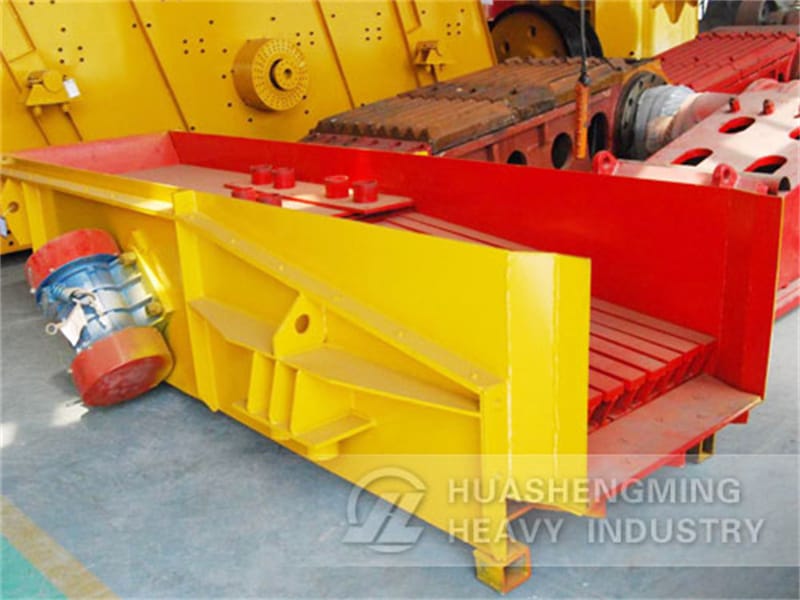

GZD Vibrating feeder series have two engines. Users can adjust vibrating frequency freely to completely control feeding speed of stone material and ensure smooth operation of production line.
ZSW vibrating feeder also linear feeder has features of stable vibration, reliable operation and long service life, can feed crushing machine continuously and has primary sieving on materials.

Technical parameters

Type Size of funnel (mm) Max. Feed lump size (mm) Capacity (t/h) Power (kw) Weight (KG) Overall dimension (mm)
GZD 600*1800 600*1800 300 30-80 1.1*2 1050 2200*1100*600
GZD800*3000 800*3000 400 80-120 1.5*2 3195 3110*1600*1600
GZD960*3800 960*3800 500 120-210 2.2*2 3980 3850*1950*1630
GZD1100*4200 1100*4200 580 200-430 3.7*2 5570 4400*2050*1660
GZD 1100*4900 1100*4900 580 280-500 5.5*2 6520 5200*2050*1700
GZD 1300*5200 1300*5200 650 450-600 7.5*2 8200 5200*2350*1750
ZSW 960*3800 960*3800 500 90-200 11 3980 3882*2224*2121
ZSW 1100*4900 1100*4900 580 180-380 15 5320 4957*2500*1365
ZSW 1300*4900 1300*4900 750 250-450 22 5900 4957*2580*2083
