In gold ore fine crushing, over-grinding is the hidden killer of recovery—fine particles easily slip away in downstream separation.Huashengming roll crusher changes the game by replacing impact force with inter-particle compression, delivering sharper size control and longer wear life.
From “Impact Breaking” to “Compressive Crushing”
The Huashengming roll crusher operates on the inter-particle crushing principle—two rollers rotating in opposite directions apply sustained compressive force to the ore, causing it to fracture along particle-to-particle contact points rather than through single-particle impact shattering. This delivers two key benefits:
Tighter particle size distribution: At the same discharge setting, the roll crusher produces significantly less over-fine material compared to impact-type crushers, with narrower size fluctuation;
Better mineral liberation: Compressive stress propagates along mineral grain boundaries, promoting separation of gold minerals from gangue along natural interfaces, rather than fracturing gold particles together with the gangue—a meaningful advantage for downstream leaching or gravity concentration.

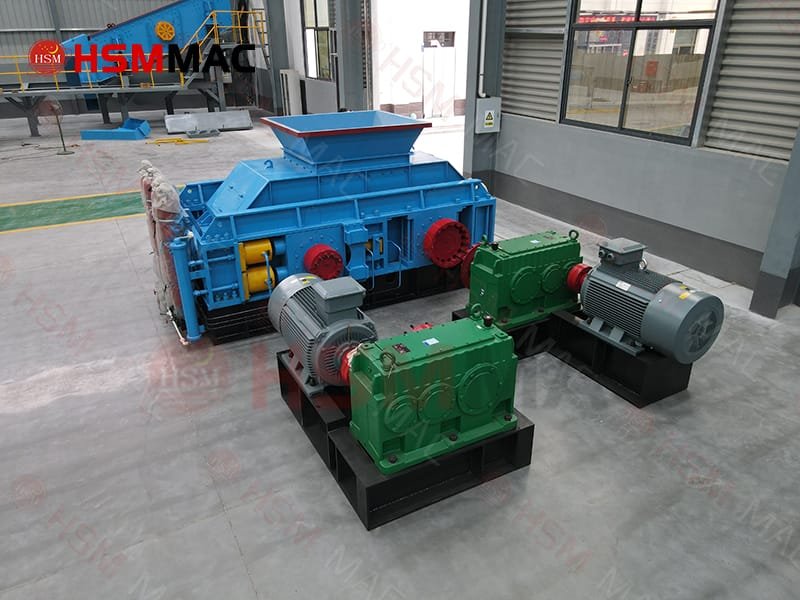

gold ore crusher
Wear Resistance & Maintenance: Roll Shell Life Depends on Material and Application Fit
Gold ore often contains high levels of hard minerals such as quartz, placing severe demands on roll shell wear resistance. The roll shell is manufactured using Huashengming’s proprietary formulation and process, delivering high working-layer hardness and abrasion resistance while maintaining core toughness to withstand impact. This results in extended service life and longer replacement intervals under hard-rock gold ore conditions.
Gap Adjustment & Overload Protection: Fast Response, Reliable Safeguarding
Ore hardness and feed size can vary significantly across different sections of a gold deposit, requiring the fine crusher to adapt quickly. The hydraulic system provides:
Online roll gap adjustment: Discharge size can be changed without stopping the crusher, accommodating different ball mill feed requirements;
Overload retraction protection: When tramp iron or unbreakable material enters the crushing chamber, the hydraulic cylinders retract instantly to release the object, then automatically return to the preset gap—effectively preventing roll shell and bearing damage, and substantially reducing unscheduled downtime.

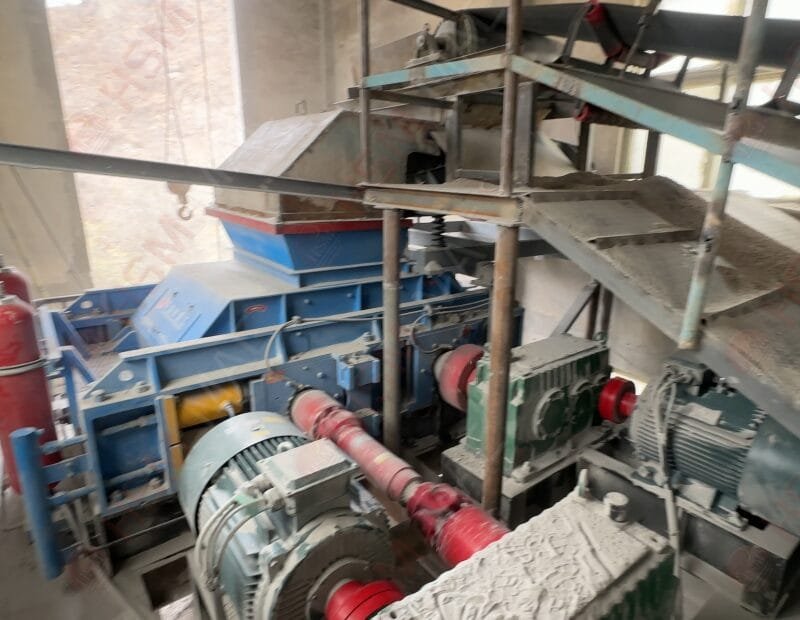

gold ore crusher production site
Total Cost of Ownership: The True Measure of Equipment Selection
Equipment decisions should not be based solely on purchase price, but on total crushing cost per ton—including power consumption, roll shell wear, maintenance labor, and downtime losses. The roll crusher’s inter-particle crushing principle offers better energy utilization, resulting in favorable power consumption compared to impact-type alternatives. Extended roll shell life further reduces replacement frequency and associated costs. Actual savings vary depending on ore characteristics, throughput, and site-specific operating conditions—on-site testing with your own material is strongly recommended.
Conclusion
The goal of gold ore fine crushing is not “the finer, the better,” but rather “liberate what should be liberated, preserve what should be preserved.” The roll crusher essentially converts crushing energy from “impact force” to “compressive force,” aligning more closely with the physical principles of selective fracture in hard rock. If you are currently facing challenges with excessive over-grinding, rapid roll shell wear, or unstable particle size, consider arranging a test run with your actual ore sample—let real data speak, rather than any marketing claim.
