Iron ore is one of the hardest and most abrasive materials encountered in mineral processing. Yet, operations worldwide specify double roll crushers for fine crushing and lump-fines separation because low-speed compression comminution aligns perfectly with iron ore economics: maximizing energy efficiency for concentrator ball mills while protecting the valuable lump-fines split in Direct-Shipping Ore (DSO) operations. This article examines five core reasons roll crushers excel in iron ore duty, outlines process flowsheets, reviews high-chrome roll metallurgy, and provides expert FAQ guidance from Huashengming (HSM) Heavy Machinery.
Iron ore is hard and among the most abrasive materials any crusher will ever face. Yet iron ore processing plants around the world consistently specify the double roll crusher for fine crushing—not despite the ore’s extreme hardness, but because of what iron ore economics actually reward.
Consider two distinct iron ore business models and their corresponding crushing priorities:
- Concentrator Plants (Magnetite / Low-Grade Hematite): Material feeds grinding mills directly, making the primary objective the smallest practical mill feed top size achieved at the lowest specific energy cost.
- Direct-Shipping Ore (DSO) / Lump-and-Fines Operations: The final product splits into commercial lump ore (typically ~10–40mm) and fines, requiring precise adherence to lump specifications without over-generating undersize material that sells at a heavy market discount.
The double roll crusher serves both models effectively: compression crushing lowers mill feed size efficiently, while its “crush-to-size-and-exit” action produces minimal unwanted undersize—protecting the critical lump-fines split that drives DSO revenue.
Note: Capacities and size ranges are nominal reference values; final equipment selection is confirmed against your specific ore analysis and product specifications 【Custom Parameters Available】.

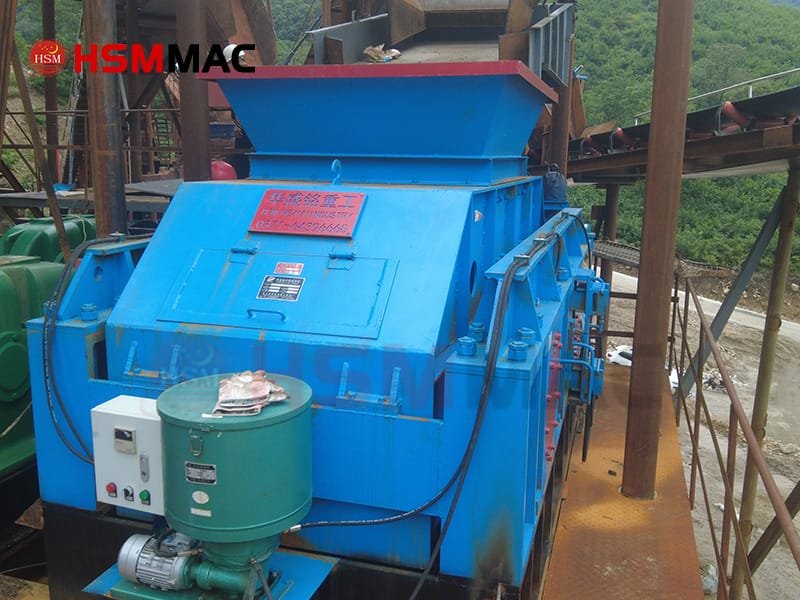

HSM Hydraulic Double Roll Crusher Operating in an Iron Ore Concentrator
1. Five Reasons the Roll Crusher Suits Iron Ore Duty
- “Crush More, Grind Less” (The Concentrator’s Biggest Economic Lever): Grinding consumes the vast majority of concentrator electrical power. Compression comminution is significantly more energy-efficient per ton than tumbling ball milling; every millimeter removed upstream by a roll crusher translates directly into steel-ball energy saved downstream. In iron ore processing, where tonnages are massive and every kilowatt-hour per ton is closely tracked, this represents the core economic justification 【Custom Parameters Available】.
- Minimal Over-Crushing (Protecting the Lump-Fines Split): In DSO operations, crushing material below the fines threshold creates product that sells at a discount. Roll crushers release particles instantly once they clear the set gap, maximizing product within the specification window while minimizing ultrafines. Impact crushers shatter ore repeatedly, artificially inflating undersize fractions and causing direct revenue loss.
- Built for Abrasive Ores: Free from hammers, blow bars, or high-speed rotors. The primary wear components are the roller shells—specified in heavy-duty high-chromium alloys for iron ore service—which wear evenly across the full active face and are replaced individually without machine overhauls.
- Hydraulic Protection Against Tramp Iron: Shovel teeth, drill steel fragments, and crusher liner pieces inevitably survive into primary feeds. High-response hydraulic relief systems retract the movable roll instantly to pass foreign metal objects and reset automatically, protecting roll shells and main shafts while preventing the unplanned downtime iron ore plants can least afford.
- Adjustable Discharge Without Parts Changes: Inter-roll gap adjustments govern product top sizes. When ore hardness or product specifications shift—such as harder ore from a new pit phase or a tighter lump specification—operators simply adjust mechanical or hydraulic settings to match.
2. Where It Sits in the Iron Ore Flowsheet
Standard Proven Circuit:
Vibrating Feeder rightarrow Jaw Crusher (Primary) rightarrow Cone Crusher (Secondary) rightarrow Double Roll Crusher (Tertiary / Fine Crushing) rightarrow Circular Vibrating Screen (Closed Circuit) rightarrow Mill Feed / Lump-Fines Separation.
Two Practical Rules of Thumb:
- Keep Feed Properly Prepared: Roll crushers function as fine-crushing machinery; upstream jaw and cone stages must reduce feed top sizes within allowable limits (25–120mm depending on model) 【Custom Parameters Available】.
- Close the Circuit with a Vibrating Screen: Recirculating oversized material maintains strict product specs without forcing roll gaps to extreme minimums that compromise throughput capacity.
Iron Ore Double-Roll Crusher in Operation
3. Model Range for Iron Ore (Reference)
| Model Designation | Roll Diameter (mm) | Max Feed Size (mm) | Capacity (T/H) |
|---|---|---|---|
| 2PGT750×500 | 750 | 30 | 10–40 |
| 2PGY800×1000 | 800 | 40 | 50–80 |
| 2PGY1200×1200 | 1200 | 60 | 120–150 |
| 2PGY1500×1200 | 1500 | 80 | 200–250 |
| 2PGY1800×1000 | 1800 | 100 | 250–300 |
| 2PGY2000×1200 (Flagship) | 2000 | 120 | 300–400 |
Selection Rule: Choose a model whose mid-range capacity covers your operational duty, not one whose ceiling equals it. High-chrome alloy roller shells are supplied as standard specifications for all iron ore applications 【Custom Parameters Available】.
4. Frequently Asked Questions
Q: Can a roll crusher really handle hard magnetite?
A: Yes—high-chrome alloy shells mounted on a low-speed compression machine handle hard, abrasive ore reliably. While shell wear rates on magnetite naturally exceed those on softer ores, lifetime wear costs and maintenance downtime continue to favor roll shells over impact-type wear parts in this duty. Send your ore hardness and abrasion metrics for precise machine sizing 【Custom Parameters Available】.
Q: Roll crusher or cone crusher at the tertiary stage?
A: They are complementary rather than competing. Cone crushers carry the bulk size reduction, while roll crushers take over where precise top-size control and low fines generation pay off—immediately before grinding ball mills or at the lump-fines split in DSO circuits.
Q: What product size can it deliver?
A: Product top sizing follows inter-roll gap settings. The practical operating window depends on ore hardness, feed grading, and moisture content; we confirm performance against your target specifications through engineering calculations 【Custom Parameters Available】.
Q: How does the machine handle wet iron ore fines?
A: Roll crushers tolerate wet, slightly sticky feeds much better than impact machines, which blind rapidly with wet fines. For extremely sticky ores, specialized toothed roll surfaces are readily available.
5. Size Your Machine With Four Data Points
To receive a precise engineering proposal and quotation for iron ore processing, please provide:
- Ore Type & Hardness: (e.g., magnetite, hematite, DSO grade; Bond work index if available)
- Feed Top Size to Crusher: (Pre-crushed top dimensions entering the double roll stage)
- Required Product Specification: (Mill feed top size or required lump/fines split ratio)
- Design Capacity: (Tons per hour target)
Providing these four metrics allows Huashengming to specify exact equipment models, motor ratings, and high-chrome roller shell configurations 【Custom Parameters Available】.
Referenced process descriptions serve as engineering guidelines; specific performance parameters are governed by official project customization agreements.
