This article examines whether the rotational speed of double roll crushers can be adjusted during operation. It explains the design principles behind fixed-speed standard models and variable frequency drive (VFD) options. By evaluating how speed adjustments impact comminution efficiency, power consumption, roll wear, and material adaptability—especially in hard-rock versus fluctuating moisture applications—the piece demonstrates how Huashengming (HSM) customizes speed control systems to deliver maximum operational flexibility and lowest TCO.
Customers frequently ask whether the rotational speed of double roll crushers can be adjusted. The definitive answer depends on the equipment configuration: standard commercial models operate at fixed factory-set speeds and are not intended for arbitrary adjustment; however, when equipped with an optional Variable Frequency Drive (VFD) control system, stepless speed regulation becomes fully operational. Huashengming (HSM) supports customized VFD speed control packages, allowing operators to match rotational speeds precisely to raw material properties and processing line demands 【Custom Parameters Available】.

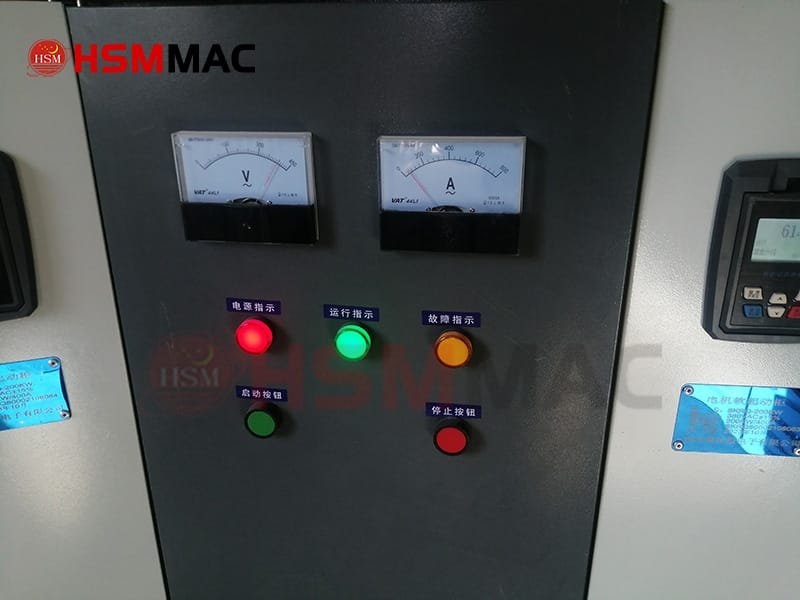

VFD Electrical Cabinet & HSM Double Roll Crusher Drive Assembly
1. How Rotational Speed Is Determined in Standard Models
• Fixed Speed Ratio Architecture
Roll rotational speed is calculated based on motor RPM and fixed mechanical transmission ratios (sheave ratios or gear reducer ratios), factory-matched to specific material conditions.
• Factory Baseline Calibration
Standard units operate steadily at their calibrated baseline speed; operators simply start and run the machine without manual speed tuning.
• Risks of Unengineered Speed Alterations
Randomly altering sheaves or motor speeds without engineering recalculation can degrade crushing efficiency, accelerate shell wear, or overload drive components.
2. Operational Options: Fixed Speed vs. VFD Control
| Configuration Type | Mechanical Mechanism | Ideal Operating Scenario |
|---|---|---|
| Standard Fixed Speed | Direct-on-line drive with fixed mechanical gear/belt ratios. | Consistent raw material hardness, uniform feed sizing, and single-product applications; lowest capital cost. |
| Variable Frequency Drive (VFD) | Integrated electronic VFD controller for stepless RPM adjustment 【Custom Parameters Available】. | Fluctuating material moisture, multi-mineral processing lines, or variable throughput requirements. |

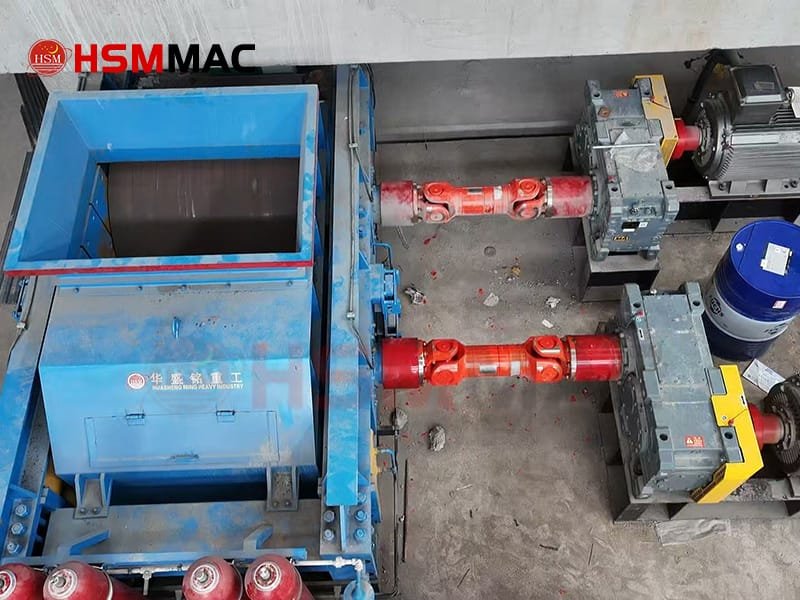

Huashengming Double-Roll Crusher
3. What Operational Values Does VFD Speed Regulation Deliver?
- Optimized Comminution Efficiency: Fine-tuning roll surface velocity adapts instantly to variations in material hardness or moisture, maintaining steady nip intake.
- Dynamic Throughput & Power Management: Increasing speed boosts mass volumetric throughput during peak demand; reducing speed during lighter loads optimizes power consumption (kWh per ton) 【Custom Parameters Available】.
- Mechanical Shock Protection: Speed reduction buffers sudden impact loads, mitigating structural shock on roller shells and drive components under heavy conditions.
4. Decision Guidelines: Do You Need Variable Speed Control?
- Stable Feed & Single Application: Standard fixed-speed configuration is fully sufficient, minimizing electrical complexity and upfront equipment costs.
- Variable Feeds & Multi-Product Lines: Specify VFD speed control during initial selection; higher initial investment pays off through long-term operational adaptability 【Custom Parameters Available】.
- High-Hardness Rock Processing (Granite/Basalt): Excessively high roll speeds are counterproductive; comminution relies primarily on high hydraulic squeezing pressure and heavy-duty wear metallurgies rather than high-speed grinding 【Custom Parameters Available】.
Need Expert Guidance on Crusher Speed Control & Drive Configurations?
Huashengming Heavy Industry provides tailored drive solutions, VFD integration, and factory trial testing to verify speed and crushing parameters before purchase 【Custom Parameters Available】.
Contact HSM engineers today to discuss your operating conditions or schedule a free raw material sample trial test.
