Quartz Stone

Quartz stone may look ordinary, but processing it gives many plant owners headaches. High hardness and strong abrasiveness mean ordinary crushers need hammer replacements every few days, and output sizes fluctuate constantly – especially problematic for dry-mix mortar producers, where unstable particle size directly affects product quality.

Huashengming roll crusher takes a different approach: compression instead of impact. Two rollers rotate at low speed in opposite directions, and quartz stone passing between them is uniformly compressed and fractured along natural fissures – not shattered. The result is well-shaped particles with minimal fines and stable gradation, perfectly matching the strict requirements of dry-mix mortar and glass raw material applications.

Quartz Stone

I. What Are the Pain Points of Traditional Quartz Crushing?

Rapid wear, high maintenance costs. Quartz has a Mohs hardness of around 7. Hammer crushers processing this hard material require hammer replacements every few days. Downtime, parts replacement, and restarting – efficiency drops and costs rise.

Unstable particle size, high rejection rates. Dry-mix mortar and glass raw materials have strict particle size standards. Traditional impact crushers produce fluctuating output with low pass rates. Large quantities of不合格品 must be re-crushed or discarded as waste – a significant loss.

Excessive fines, poor product quality. High-speed impact “shatters” quartz stone, generating excessive fines. Too much fine material affects mortar strength and reduces glass raw material purity, causing customer rejections.

II. How Does Huashengming Roll Crusher Work? Compression Instead of Impact

Huashengming roll crusher operates on the double-roll static compression principle. Two high-strength rollers rotate toward each other, applying continuous, uniform compressive force to the material. Quartz stone fractures along natural fissures rather than being violently shattered.

What makes this “compressed” output different?

Well-shaped particles, minimal fines, and stable gradation. With the roll crusher, quartz is reduced to cubic-shaped particles, ideal for dry-mix mortar, glass raw materials, or ceramic blanks with superior gradation.

Huashengming roll crusher has been successfully applied in multiple quartz stone processing projects. It is suitable for fine crushing with feed sizes below 80mm and output sizes ranging from 50 mesh to 20mm, with discharge size freely adjustable between 1-3mm.

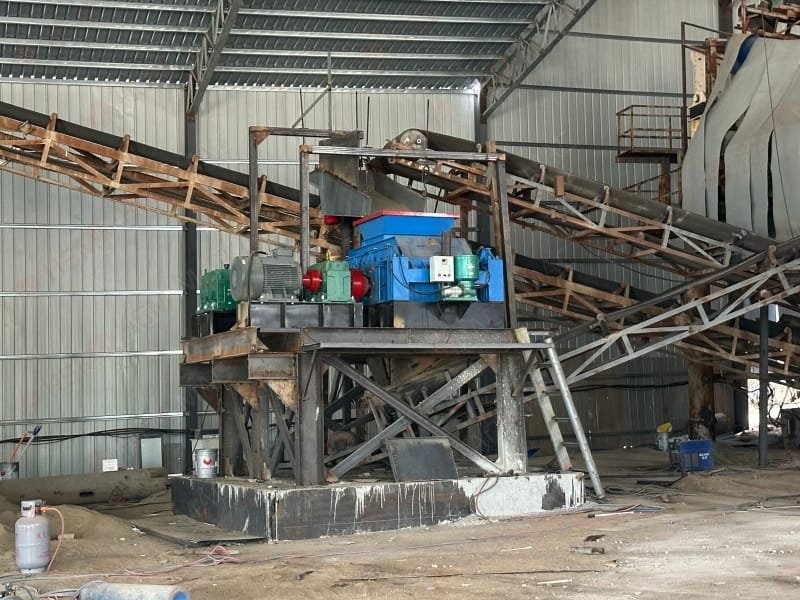

Quartz Stone Roll Crusher On-Site

III. Most Common Customer Questions

How fine can the output be?

Through hydraulic or spring system roll gap adjustment, output size can be precisely controlled within 1-3mm. Requirements for dry-mix mortar, glass raw materials, and ceramic blanks can all be met.

Are the roller shells wear-resistant? How long do they last?

Huashengming roller shells are made of high-chromium manganese steel with rare alloying elements (patent pending). The average service life exceeds 2 years – no frequent hammer replacements like impact crushers, significantly lower long-term maintenance costs.

Can it handle moist materials?

Yes. The screenless design allows material to pass directly between the two rollers without being affected by moisture. Quartz stone inevitably contains some moisture during mining and stockpiling. Traditional equipment often clogs, while the roll crusher operates smoothly without issues.

IV. Huashengming Service

Huashengming offers customized roll crushing solutions based on different material characteristics and output requirements. Equipment ranges from small spring-type to large CNC hydraulic models, covering capacities from 2-400 tons per hour for projects of all scales.

We welcome you to bring your material for a trial run – see the results on-site before you decide.
