Extending Roller Life: Why Feeding Control is the Secret to Low Maintenance Costs
In the operation of a Hydraulic Roller Crusher, most operators focus on hydraulic pressure or gap adjustment. However, 80% of premature roller shell failures are actually caused by poor feeding control.
If the material is not distributed correctly across the entire width of the rollers, you will experience “hollowing” or uneven wear, leading to coarse products and high vibration.

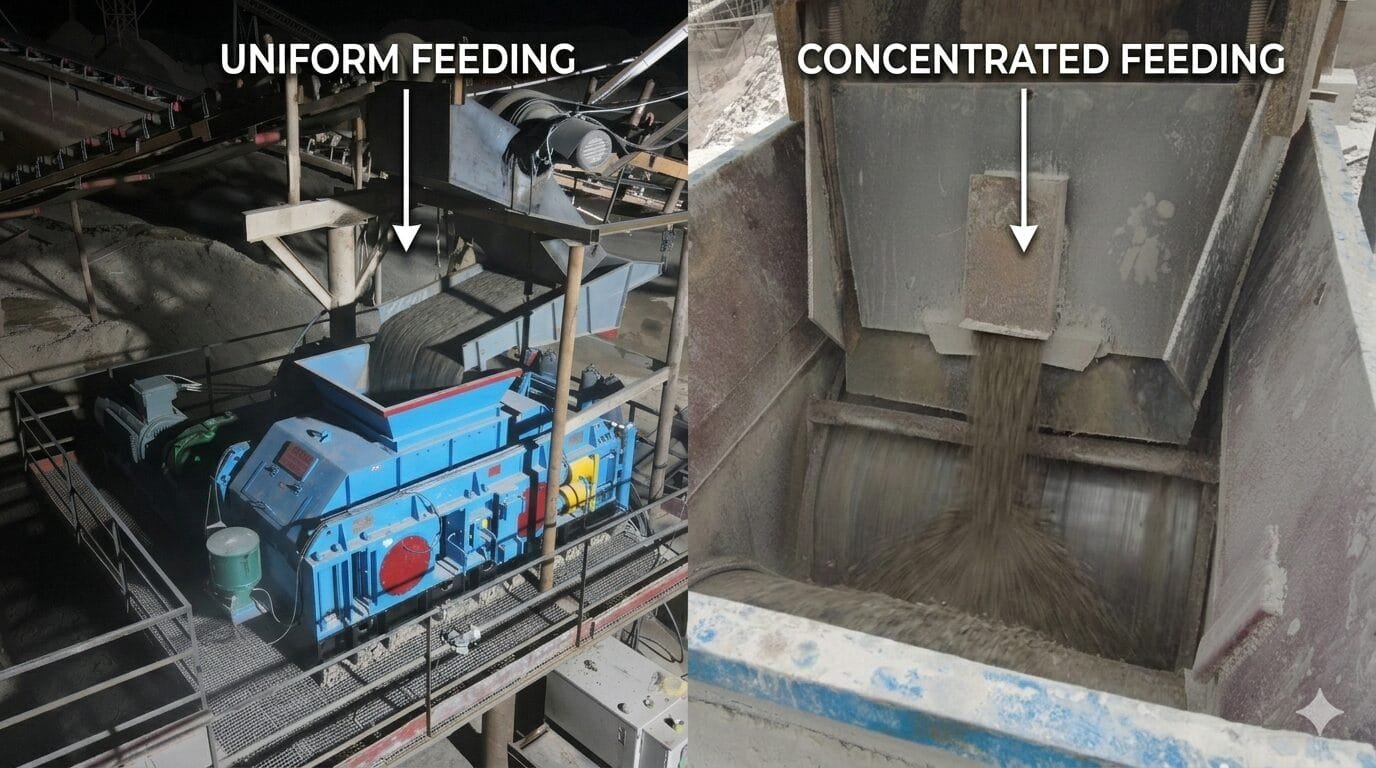

Uniform vs. Centralized Feeding: How the distribution of raw material directly impacts the wear pattern of your roller shells.
1. The “Full-Width” Feeding Rule
To maximize the service life of your alloy rollers, the material must enter the crushing chamber in a thin, wide curtain that covers the entire working surface of the rollers.
-
Avoid Centralized Loading: If stone enters only the middle, the center of the roller wears down faster, creating a “concave” shape. This allows oversized material to pass through the edges.
-
The Solution: Use a specialized Vibrating Feeder or a Gravity Distribution Box to spread the pebbles before they reach the rollers.
2. Speed Synchronization: Material vs. Roller
The velocity at which the river pebbles enter the gap is critical.
-
Impact Damage: If the feed drop height is too great, the impact can cause micro-fractures in the high-chromium roller shell.
-
Choke Feeding: Maintaining a “head” of material above the rollers (choke feeding) allows for Inter-particle Crushing, which produces a more cubical sand shape and reduces direct stone-to-metal contact.
3. Managing Moisture and Fines
Feeding control also involves managing what’s in the feed.
-
Pre-Screening: Always remove clay and fines (under 2mm) before the material reaches the roller crusher.
-
The Reason: Fines can “cushion” the crushing action or, if wet, cause the rollers to “slip,” which generates excessive heat and reduces efficiency.
Conclusion
Superior roller crusher feeding control is the hallmark of a high-efficiency quarry. By ensuring your machine “eats” evenly, you reduce downtime and ensure that every ton of sand meets the required specification.
-
