Tailings to Aggregates: Huashengming Hydraulic Roll Crusher in Action

A mining company’s processing plant generates a large volume of tailings every year. The tailings have a wide particle size distribution (0-30mm), unstable moisture content, and contain residual magnetic metals. With mounting stockpile pressure, the plant urgently needed to convert these tailings into saleable construction aggregates through resource utilization.

However, when using traditional hammer crushers, residual magnetic materials in the feed accelerated hammer wear, while high moisture content frequently caused screen clogging. The production line operating rate remained below 60%, severely constraining tailings disposal efficiency and overall profitability.

Equipment Selection

To address the challenges of fluctuating moisture content, magnetic material content, and wide particle size distribution in tailings, Huashengming recommended the 1010 Hydraulic Roll Crusher (Model 2PGY1000×1000). This machine is specifically designed for medium-hard materials containing abrasive impurities. Its core advantages include:

tailings crusher

Compression Crushing Principle: Two rolls rotate in opposite directions to generate continuous compressive force, uniformly crushing the material between them. Compared to impact crushing, this low-speed compression method offers better adaptability to moist materials, reducing the likelihood of wet, sticky material causing blockages.

Hydraulic Release Protection System: When uncrushable objects enter the crushing chamber, the roll gap automatically opens to allow them to pass. After the foreign object passes, the rolls reset automatically without manual intervention, effectively protecting the roll surfaces from damage.

Wear-Resistant Roll Shell Design: The roll shells are manufactured from high-chromium manganese steel with added wear-resistant alloying elements, capable of withstanding the abrasive conditions caused by residual magnetic materials in the tailings.

Operational Results

After commissioning, the equipment has operated stably and achieved the expected results:

Clogging Issues Significantly Reduced: The compression crushing approach avoids the adhesion problems associated with high-speed impact crushing. Screen clogging frequency has dropped substantially, and the production line operating rate has increased from below 60% to over 85%.

Stable and Adjustable Discharge Size: Depending on the subsequent use of the tailings, the roll gap can be flexibly adjusted via the hydraulic system. The processed tailings have a concentrated particle size distribution that meets construction aggregate specifications, successfully transforming solid waste into marketable building materials.

Wear Resistance Meets Operational Requirements: Under the abrasive conditions of processing tailings containing magnetic materials, the high-chromium manganese steel roll shells demonstrate significantly longer service life compared to standard roll shells. Replacement frequency is manageable, minimizing production disruptions caused by maintenance.

Throughput Matches Production Line Requirements: Equipped with two 55kW motors, the equipment delivers a stable throughput of 80 to 100 tons per hour, meeting the capacity needs of medium-scale tailings processing lines.

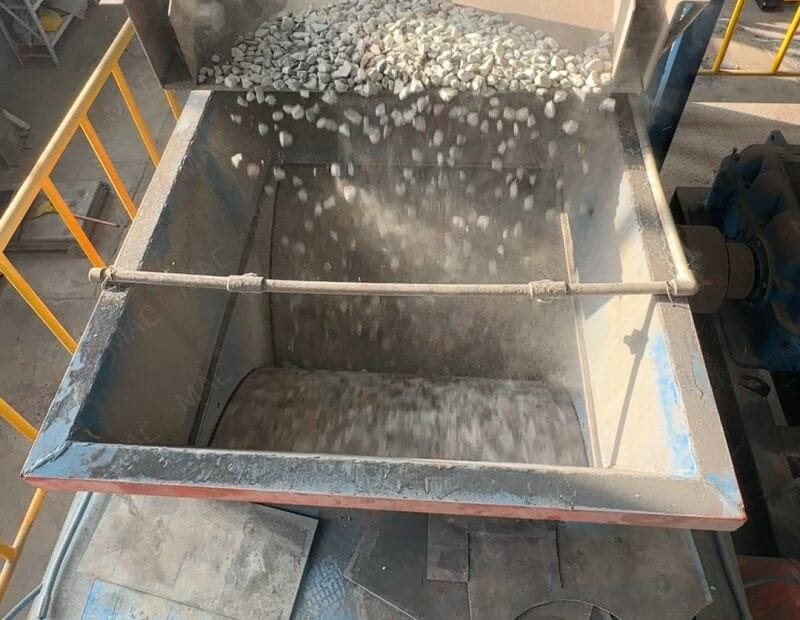

tailings crusher production site

Customer Feedback

“We used to have to stop every couple of days to clear clogged screens and replace hammers on the hammer crusher—it was a real headache. Now with this roll crusher, shutdowns are much less frequent. The discharge size is adjustable, and the downstream construction materials plant is giving us good feedback.”

—— Production Manager, Processing Plant

The Huashengming 1010 Hydraulic Roll Crusher, with its stable discharge size control, strong wear resistance, adaptability to moist materials, and hydraulic protection system, effectively addresses the core challenges of tailings processing—susceptibility to clogging, high wear rates, and low production line operating rates. It provides reliable equipment support for large-scale tailings resource utilization.
