Sand Particle Shape Directly Determines Market Price & Profit Margins:
- Well-Shaped & Cubical Granules: The double roll crusher operates on compression crushing, producing 3D cubical particles with a minimal ratio of needle-like/flaky grains.
- Low Over-Crushing Rate: Energy is applied precisely to particles, keeping fine dust generation controllable and preventing sand loss or grading imbalances during washing.
- Cost Reduction & Efficiency: Low power consumption combined with high-wear alloy roller shells delivers premium quality sand while reducing operating costs per ton.
The particle shape of manufactured sand directly determines its selling price and structural performance. Sand with high needle/flaky content or excessive dust fetches lower prices and negatively affects concrete strength. Utilizing compression crushing, double roll sand making machines produce well-shaped, highly cubical particles with low flakiness, moderate powder content, and adjustable size control—making them a reliable choice for aggregate production lines. Huashengming (HSM) double roll sand makers are specially optimized for medium-hard minerals and support sample testing to verify particle shape performance.

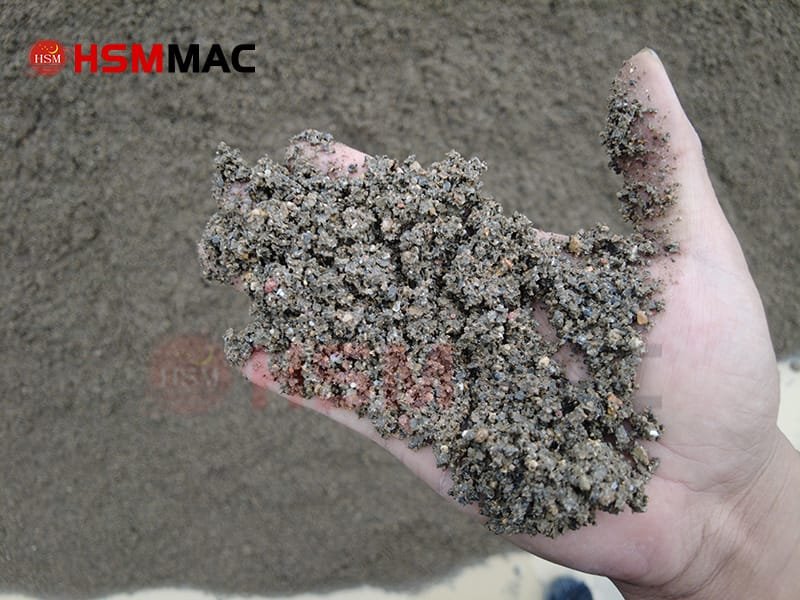

Finished Sand from the HSM Double-Roll Sand Maker
1. Why Is Sand Particle Shape Crucial for Market Profits?
In modern construction and high-specification engineering projects, beyond hardness and cleanliness, particle shape and gradation are the core indicators evaluating manufactured sand quality:
- Impact on Concrete Performance: A high proportion of elongated/flaky particles increases inter-particle friction, impairing concrete workability, accelerating slump loss, requiring more cement, and lowering overall compressive strength.
- Control of Fines Content: Excessive stone powder compromises aggregate gradation and increases pumping resistance; conversely, too few fines cause bleeding. Maintaining a balanced powder content is key for high-standard sand.
- Direct Economic Value: Well-shaped cubical manufactured sand commands higher market prices per ton, enjoys broader buyer demand, and significantly mitigates returns or downgrade risks.
2. How Does the Finished Sand Shape Look with a Double Roll Sand Maker?
• Well-Shaped Granules with Low Flakiness
Double roll crushers employ a inter-particle compression crushing mechanism where material experiences uniform high-pressure squeeze and shear between two counter-rotating rollers. This force acts directly on internal structural flaws, resulting in solid 3D cubical particles with minimal elongated or flat shapes.
• Low Over-Crushing & Controllable Fines Content
Unlike high-speed impact crushers that rely on kinetic collision, energy transfer in roll crushers is targeted and direct. This reduces excessive attrition and over-grinding, generating a lower percentage of ultra-fine dust and easing washing loads downstream.
• Uniform Particle Size & Adjustable Fineness Modulus
By adjusting the discharge gap between the two rollers, operators can directly control output fineness—effortlessly switching between coarse (3.1–3.7), medium (2.3–3.0), and fine sand (1.6–2.2) specifications with minimal batch fluctuations.
3. Double Roll Crusher vs. Impact Sand Maker Comparison
| Comparison Feature | Double Roll Crusher (Compression) | Impact Sand Maker (VSI / Impact) |
|---|---|---|
| Crushing Principle | Counter-rotating roller squeeze and shear forces. | High-speed rotor throwing material (rock-on-rock/rock-on-anvil). |
| Particle Shape & Flakiness | Consistent 3D cubical shape, low flakiness ratio, highly stable gradation. | Sharp angularity with strong shaping capability; flakiness varies with rock types. |
| Stone Powder Content | Low over-crushing; fines generation is moderate and easy to manage. | High impact wear produces a larger volume of ultra-fine micro-powders. |
| Power & Energy Consumption | High energy efficiency; significantly lower kWh per ton of output. | High motor RPM and total power rating lead to higher electricity expenses. |
| Wear Parts & Maintenance | Even roller surface wear, durable alloys, long replacement intervals. | Blow bars, distributor plates, and impellers suffer rapid wear in hard rock. |
HSM Double Roll Sand Maker Working Principle
4. Key Factors Influencing Particle Shape Quality
- Material Physical Properties (Hardness & Moisture): Cleavage planes and compressive strength directly affect compression fracture characteristics. Hard or sticky materials should be sample-tested to determine custom roller surface patterns.
- Roller Discharge Gap Setting: The roll gap governs both discharge size and inter-particle compression pressure. Maintaining an exact gap via hydraulic mechanisms is vital for shape consistency.
- Stable and Continuous Feeding: Maintaining choke-feeding across the full roller width creates a high-density “bed compression effect,” encouraging inter-particle attrition for superior particle shape.
Summary & HSM Testing Services: With excellent particle shape control, low over-crushing rates, and minimal operating costs, double roll crushers represent an ideal choice for high-specification manufactured sand plants. Huashengming (HSM) double roll sand making machines are optimized for river pebbles, calcite, basalt, and other medium-to-hard minerals. We provide free material sample testing and factory trial runs with complete sieve analysis reports to tailor custom plant configurations for your business.
