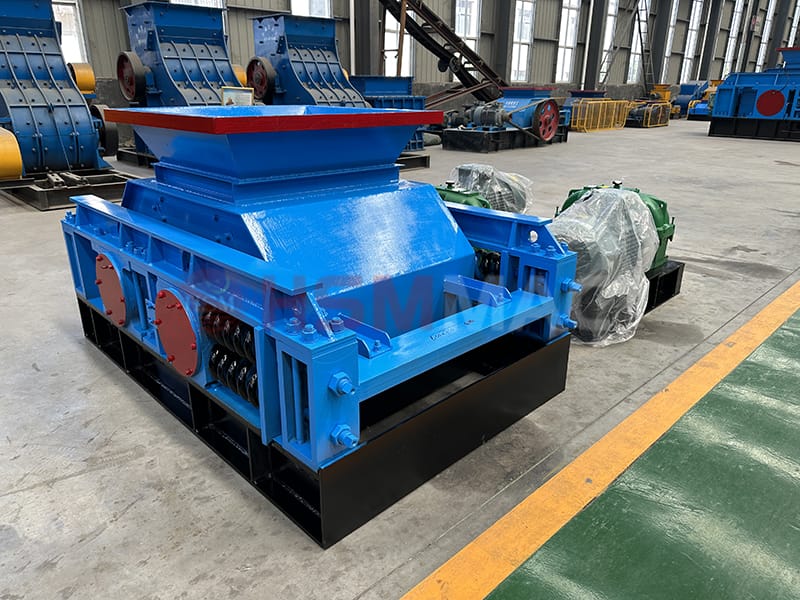

Huashengming Heavy Industry’s double-tooth roller crusher is specialized equipment for processing waste glass (such as glass bottles and construction waste glass). Its design balances high-efficiency crushing with environmental requirements, featuring exceptional durability and flexible adjustment capabilities that make it particularly well-suited for the glass recycling industry.Huashengming Heavy Industry’s double-tooth roller crusher is a professional glass crusher.
glass crusher
1. Core Technology and Working Principle
Twin-Toothed Roller Structure
The equipment employs two parallel toothed rollers rotating in opposite directions. Crushing is achieved through the squeezing, shearing, and friction between the teeth and the material. The roller gap is adjustable (10-200mm), enabling precise control of the output particle size (e.g., glass fragments are typically controlled between 15-100mm).
Low Pulverization Design
Optimized tooth profiles minimize excessive crushing, enhancing glass recovery rates and meeting recycled material requirements for low powder content (pulverization rate lower than conventional crushers).
Multi-Protection System
Equipped with mechanical, electrical, and hydraulic overload protection plus a fluid coupling to prevent motor damage and withstand sudden impacts during glass crushing.
2. Models and Performance Parameters (for Glass Crushing)
Below are commonly used models with an hourly output of approximately 50 tons, suitable for small to medium-scale recycling needs:
| Model | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power | Applications |
|---|---|---|---|---|---|
| 2PGC450×500 | 300-500 | 15-100 | 30-60 | 7.5kw×2 | Small recycling stations, glass bottle processing |
| 2PGC600×750 | 300-600 | 20-120 | 60-100 | 15kw×2 | Medium-sized glass recycling plants, construction waste processing |
Note: Larger models (e.g., 2PGY series) support hourly output of 100-400 tons, suitable for large-scale processing.
3. Core Advantages
High Efficiency & Energy Savings
Reduces energy consumption by over 30% (compared to jaw crushers), achieves a glass crushing ratio of 5:1, significantly boosting processing efficiency.
Exceptional Durability
Roll teeth utilize high-chromium manganese steel wear-resistant material (patented technology), extending service life by 50% and minimizing wear from sharp glass edges.
Flexible Adaptability
Supports interchangeable tooth profiles including wolf teeth and trapezoidal teeth (6 types total), accommodating varying glass thicknesses and hardness (e.g., bottle glass vs. architectural glass).
Eco-Friendly & Low Noise
Sealed dust-proof design minimizes airborne particles; noise level ≤75dB, meeting green production standards.
