Key Hazards & Operational Takeaways:
- The “Nip Angle” Red Line: When particle size exceeds the allowable intake limit, the nip angle fails, causing rocks to bounce or slip rather than entering the crushing zone.
- Severe Equipment Consequences: Oversized feeds cause intake blockage, sharp throughput drops, localized roller surface gouging, motor overloads, and irregular discharge grading.
- Prevention & Mitigation: Use a 2-stage Jaw Crusher → Double Roll Crusher flow, install pre-screening grizzlies, and utilize uniform vibrating feeders.
Feed particle size is the primary operational limit when running a double roll crusher. Forcing oversized rocks into the feed chamber disrupts the mechanical angle of nip, causing feed bouncing, excessive roller shell gouging, and sudden motor overload trips. Controlling intake size is essential to maintaining high hourly tonnage and protecting wear liners. Huashengming (HSM) engineers complete crushing circuits—combining primary jaw crushers, pre-screens, and double roll units—to keep feed sizes within safe operating bounds.

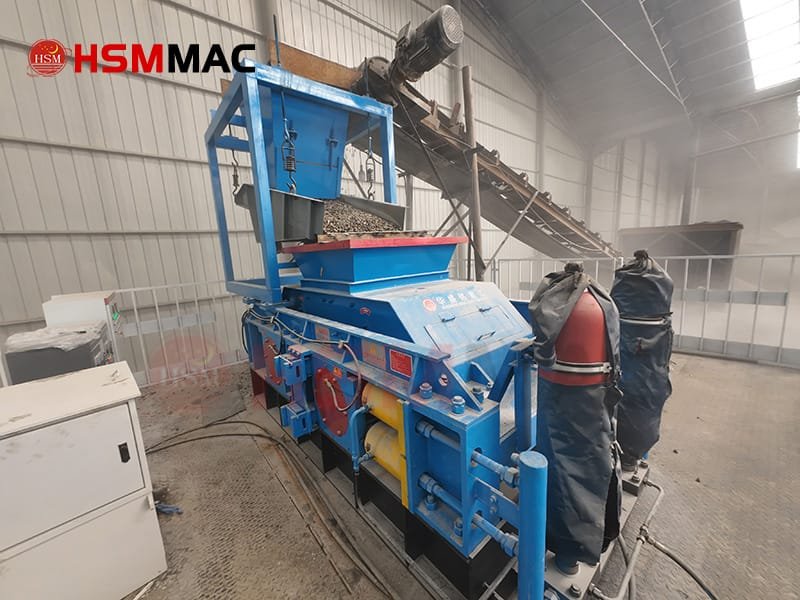

Double Roll Crusher
1. Five Major Hazards of Feeding Oversized Material
- 1. Intake Bridging & Roller Slippage: When the rock diameter exceeds the roller nip capability (typically >5–10% of roller diameter), friction cannot pull the rock downward. The stone bounces or spins in place, creating a severe feed bottleneck.
- 2. Sharp Drop in Production Throughput: Bouncing rocks block smaller aggregate from entering the crushing chamber, underutilizing motor capacity and dropping total hourly output.
- 3. Accelerated & Uneven Roller Shell Wear: Uncrushed rocks spinning on top of alloy rollers act as friction grinders, gouging deep grooves into the shell faces and drastically shortening wear liner life.
- 4. Motor Overloads & Hydraulic Relief Fatigue: Massive single-point impact forces activate dynamic hydraulic bypass cylinders continuously, causing current spikes, motor trips, and hydraulic valve wear.
- 5. Unstable Finished Product Sizing: Frequent hydraulic cylinder bypass lets uncrushed medium-sized material slip through, compromising output gradation for downstream sand-making or milling.
2. How to Eliminate Oversized Feed in Your Plant
• Primary Jaw Crusher Pre-Crushing
Pass large quarry boulders through a primary Jaw Crusher first to break them down to safe secondary sizes (<50–100mm) before entering the double roll unit.
• Pre-Screening Grizzly Bars
Install a grizzly feeder or vibrating screen before the roll crusher to scalp off rogue boulders and send only correctly sized feed to the rollers.
• Controlled Metered Vibrating Feeders
Avoid dump-truck batch feeding. Use regulated vibrating feeders to distribute a steady, level layer of stone across the entire width of the rollers.
3. Troubleshooting & Corrective Action Matrix
| Observed Symptom | Root Cause | Recommended Immediate Action |
|---|---|---|
| Rocks Bouncing in Hopper | Feed size exceeds nip angle threshold. | Halt oversized feed immediately; install pre-grizzly screen. |
| Grooved / Uneven Roller Shells | Localised friction from uncrushed oversized rock. | Inspect liner thickness, resurface or replace roller shells. |
| Frequent Motor Overload Trips | Transient shock loads from oversized stone. | Add primary jaw crusher stage or adjust roller hydraulic pressure setting. |

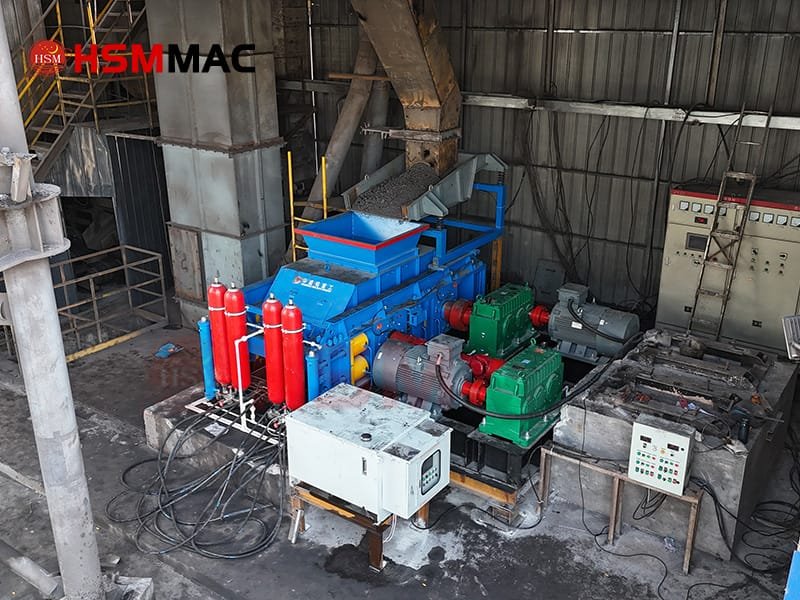

HSM Hydraulic Tramp Relief System
4. Huashengming (HSM) Technical & Customization Support
- Custom Feed Chamber Sizing: Models selected and built according to maximum raw rock dimensions verified at your quarry site 【Custom Parameters Available】.
- Automatic Hydraulic Tramp Relief: Built-in hydraulic protection automatically opens rollers to discharge uncrushable tramp material safely, protecting motors and shafts.
- Stock Replacement Shells: High-manganese and chromium alloy replacement shells maintained in factory stock for rapid dispatch.
- Free Technical Site Assessment: Contact HSM engineers to review your current plant configuration and calculate optimal pre-crushing or screening additions.
Immediate Action Protocol: Stop oversized feed → Inspect roller wear → Add primary Jaw Crusher or pre-screening.
Contact Huashengming for custom circuit design and replacement wear liner quotes.
