Power plant coal handling—whether for CFB boilers or pulverized fuel systems—demands strict fuel sizing, minimal fines generation, superior moisture tolerance, and enhanced safety around combustible coal dust. Double roll crushers are widely specified for coal preparation because their low-speed compression design outperforms high-impact machinery. This article outlines why power plants choose roll crushers, reviews coal handling technical demands, presents reference model specifications, and details the four critical data points needed for custom sizing from Huashengming (HSM) Heavy Machinery.
Power plant coal—whether run-of-mine (ROM) coal for circulating fluidized bed (CFB) boilers or washed coal for pulverized fuel systems—has one hard requirement: adhering strictly to the feed size windows your boilers can accept. Oversize coal blocks feeders and chutes, while undersize coal (fines) generates dust, loses financial value in stockpiles, and disrupts combustion and dust-collection systems.
The double roll crusher is widely deployed in power plant coal preparation because it controls that sizing window better than any impact-type machine: adjustable product top sizes, minimal fines generation, low dust emissions, and a low-speed mechanical design that is inherently safer around combustible coal dust.
Note: Capacity and size figures are indicative; final equipment selection is confirmed against your specific boiler fuel specifications 【Custom Parameters Available】.

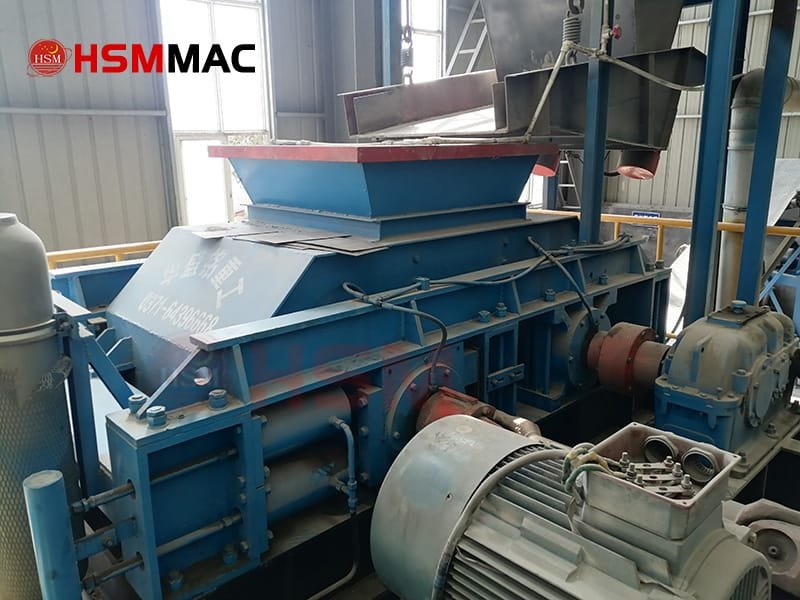

HSM Double Roll Crusher Operating in a Power Plant Coal Handling System
1. What Coal Crushing Demands—and How Roll Crushers Answer
- Precise Top-Size Control for Boiler Feed: CFB boilers typically require coal crushed to a narrow top-size window (commonly around 10mm or below). Product sizing on a double roll crusher is set via precise inter-roll gap adjustments—set it once, and the top size holds steady without screens blinding or grinding elements drifting out of spec 【Custom Parameters Available】.
- Minimal Fines (Coal Fines Are Lost Money): High-speed impact crushing shatters coal, generating large fractions of fine powder that blow away in stockpiles, overload dust collectors, and segregate from the fuel blend prior to combustion. Compression crushing squeezes coal cleanly to size and discharges it. What you buy is what you burn—yielding true financial savings over annual plant operations.
- Low-Speed Design (Inherently Safer): Coal dust is highly combustible. High-speed impact crushers generate mechanical sparks and friction hot spots—genuine ignition sources in enclosed coal-handling environments. Double roll crushers operate at low peripheral speeds without high-energy impacts, making them the preferred choice for coal-fired power stations.
- Handling Wet, Sticky Coal Without Clogging: Surface moisture in coal is unavoidable. Impact crushers blind rapidly with wet fines; roll crushers tolerate higher moisture content, and specialized toothed roll surfaces can be specified for sticky, high-moisture ROM coal 【Custom Parameters Available】.
- Hydraulic Protection Against Tramp Metal: Rock, roof bolts, and drag chain links frequently arrive mixed with plant coal. Hydraulic safety relief systems allow movable rolls to retract instantly, pass foreign metal objects, and reset automatically—protecting roll shells and keeping crushers fully available.
- Low Dust & Low Noise: Low peripheral roll speeds reduce induced airflow and minimize dust emissions at transfer points, making it significantly easier to meet environmental plant standards and gentler on downstream baghouses.
2. Typical Power Plant Application Points
Standard Flowsheet: ROM Coal Hopper rightarrow Vibrating Feeder rightarrow Double Roll Crusher (or Toothed Roll Crusher) rightarrow Vibrating Screen rightarrow Boiler Bunkers / Stockpile.
Common Plant Duties:
- CFB Boiler Fuel Preparation: Sizing ROM coal down to strict boiler top sizes at high operational throughputs.
- Primary & Secondary Sizing Ahead of Pulverizers: Reducing lump coal so that pulverizing mills operate within their most efficient design ranges.
- Waste Coal & Slurry Reprocessing Plants: Recovering energy value from fines-rich stockpiles while generating minimal additional unwanted fines.
Toothed Roll Surfaces
3. Model Range for Coal Duty (Reference)
| Model Designation | Roll Diameter (mm) | Max Feed Size (mm) | Capacity (T/H) |
|---|---|---|---|
| 2PGT610×400 | 610 | 30 | 5–20 |
| 2PGT750×500 | 750 | 30 | 10–40 |
| 2PGY800×1000 | 800 | 40 | 50–80 |
| 2PGY1200×1200 | 1200 | 60 | 120–150 |
| 2PGY1500×1200 | 1500 | 80 | 200–250 |
| 2PGY2000×1200 (Flagship) | 2000 | 120 | 300–400 |
For coal processing, customized toothed roll surfaces are available for sticky ROM coal, while smooth rolls suit washed, pre-sized coal where tighter top sizes are required. Selection Rule: Choose a model whose mid-range capacity covers your operational duty, not one whose ceiling equals it 【Custom Parameters Available】.
4. Frequently Asked Questions
Q: Roll crusher or ring hammer mill for power plant coal?
A: Ring hammer mills dominate pulverizer-feed duty but generate excessive fines and dust, while wearing rapidly against abrasive rocks mixed into coal. Where boilers accept crushed coal directly (CFB), or where fines represent a financial cost, double roll crushers offer the lowest lifetime cost. Many thermal plants utilize both machine types across different preparation stages.
Q: What top size can you guarantee?
A: Top size is governed by inter-roll gaps and holds reliably; the exact achievable window depends on coal rank, moisture content, and feed size distribution. Send us your boiler fuel specification and coal analysis for engineering calculation 【Custom Parameters Available】.
Q: What about coal dust explosion risks?
A: The crusher’s low-speed design eliminates the mechanical impact sparks and hot-spot sources typical of high-speed machinery. However, it must still be integrated with your plant’s overall dust-control and explosion-protection architecture—we supply the robust crusher, while safety system designs remain governed by your plant standards.
5. Size Your Crusher With Four Data Points
To receive a precise engineering proposal and quotation for power plant coal duty, please provide:
- Coal Rank & Moisture Range: (e.g., sub-bituminous, bituminous, surface moisture percentages)
- Feed Top Size: (ROM top size or pre-screened lump dimensions)
- Required Product Top Size: (Stated per boiler fuel specifications)
- Design Capacity: (Tons per hour, average and peak tonnage targets)
Providing these four metrics allows Huashengming to specify exact equipment models, roll surface metallurgies, and toothed roll configurations 【Custom Parameters Available】.
Referenced process descriptions serve as engineering guidelines; specific performance parameters are governed by official project customization agreements.
